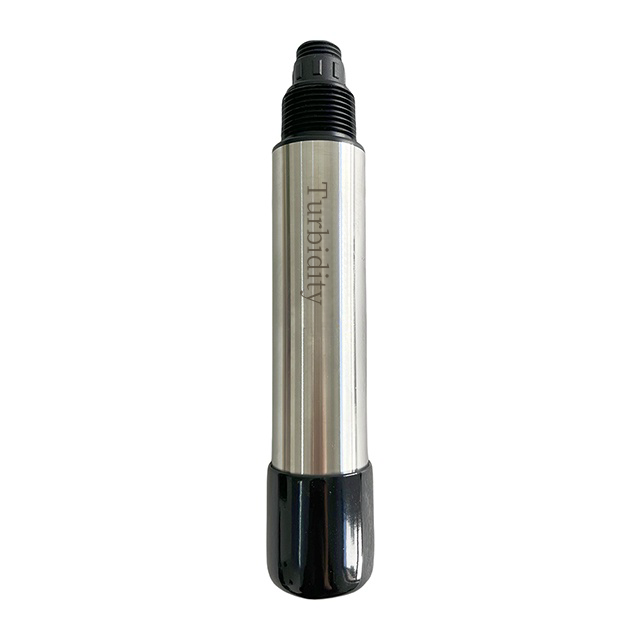

Specifying the wrong measurement range for a water turbidity sensor guarantees one of two failures. You either face critical data clipping during process spikes, or you get uselessly poor resolution at baseline levels. For industrial facility engineers and system integrators, selecting a sensor is a delicate balancing act. You must constantly balance normal operating conditions against worst-case scenario suspended solids. A mismatch here leads to severe blind spots in process control. Poor specification ultimately compromises your entire water treatment strategy. This guide outlines the engineering criteria, implementation realities, and technical frameworks required. You will learn how to specify the exact turbidity range and probe architecture for your system. We cover essential optical methodologies, fouling mitigation tactics, and digital data integration techniques. By following these principles, you can confidently deploy sensors matching your true process reality. Your instrumentation will remain reliable, precise, and fully optimized for your unique industrial environment.
Match Range to Process Reality: Low-range sensors (0-10 NTU) offer precision for potable water; wide-range sensors (e.g., a 0-4000 NTU sensor) prevent signal max-out in wastewater.
Methodology Dictates Performance: High-turbidity applications require different optical geometries (like backscatter or ratio methods) compared to low-turbidity environments (standard 90-degree scatter).
Fouling Limits Accuracy: High-NTU environments demand active cleaning mechanisms (wipers/air blasts) to maintain data integrity.
Plan for Connectivity: Successful turbidity sensor integration relies on choosing the right output protocols (Modbus RS485, 4-20mA) for your existing PLC/SCADA infrastructure.
A single sensor rarely excels at both extremes. You cannot easily detect 0.01 NTU changes while retaining a 4,000 NTU maximum limit. The physics of optical sensors dictate a strict trade-off. High sensitivity requires high-gain amplifiers to detect faint scattered light. These amplifiers quickly saturate when particle density increases. Conversely, wide-range detectors use lower gain settings. They struggle to register tiny optical fluctuations in exceptionally clear water. You must prioritize your most critical measurement phase.
Under-specifying your range creates dangerous operational blind spots. Consider a municipal intake facility using a 0-100 NTU sensor. During a heavy storm event, influent turbidity might spike to 600 NTU. The sensor immediately maxes out at 100 NTU. Your SCADA system records a flat, capped line. Operators remain completely blind to the actual pollutant load. They fail to increase coagulant dosing accordingly. This data clipping allows untreated suspended solids to overwhelm downstream filtration systems.
Over-specifying presents an equally problematic scenario. Deploying a massive range probe in a clean-water application ruins your baseline data. Wide-range sensors inherently possess higher electronic noise at the bottom of their scale. If you use them in reverse osmosis permeate, you introduce a high noise-to-signal ratio. The sensor might fluctuate erratically between 0.0 and 1.5 NTU. You will fail to detect actual trace contamination or early-stage membrane breakthrough events.
You achieve successful sensor specification by following the 50% span rule. Normal daily operations should fall comfortably within the middle 50% of the sensor's total span. Simultaneously, you must retain enough headroom to capture historical peak spikes. If your average baseline sits at 40 NTU, but annual storms hit 800 NTU, you need a 0-1000 NTU sensor. This balance protects daily resolution while capturing critical upset events.
These highly sensitive probes operate exclusively in clean environments. Typical applications include reverse osmosis (RO) protection and municipal drinking water effluent. The primary focus here is extreme low-end sensitivity. Facilities require compliance-grade resolution to meet strict government health standards. These sensors detect microscopic particle shifts. They instantly alert operators to failing filters or compromised membranes before contaminated water leaves the facility.
Medium-range sensors handle moderate particulate loads effectively. You will typically find them in cooling tower water systems, industrial discharge pipelines, and surface water intakes. The main focus here is versatility. Many of these sensors utilize auto-ranging features. They automatically switch internal gain settings to handle variable flow conditions smoothly. They provide reliable data whether the river intake is running clear or moderately murky.
Heavy industrial applications require brute-force optical capability. Applications include raw wastewater influent, sludge thickening tanks, and mining runoff channels. Here, you must deploy a robust 0-4000 NTU sensor. These devices utilize specialized optics. They penetrate dense suspended solids without suffering from optical saturation. Standard sensors fail completely in these opaque fluids, but high-range probes deliver consistent, actionable data.
The chart below outlines how different measurement ranges align with specific industrial operations.
Range Category | Typical Applications | Primary Engineering Focus |
|---|---|---|
0–10 NTU | Reverse osmosis, potable water effluent | Extreme low-end sensitivity, compliance tracking |
0–1000 NTU | Cooling towers, industrial discharge | Versatility, handling seasonal flow variations |
0–4000+ NTU | Raw wastewater, mining runoff, sludge | Optical penetration, avoiding sensor saturation |
Optical methodology determines how effectively the sensor interacts with your specific fluid. The two primary frameworks are ISO 7027 and EPA 180.1. ISO 7027 uses an 860nm Near-Infrared (NIR) light source. Infrared light is standard for industrial wastewater because it ignores sample color. If your effluent contains dyes or chemical discoloration, NIR light passes through unaffected. Conversely, EPA 180.1 uses a white light source. Colored water absorbs white light, which drastically skews your turbidity readings.
Geometry also matters immensely. Low-to-medium NTU environments rely on 90-degree scatter (nephelometric) measurement. The detector sits perpendicular to the light beam. However, highly opaque ranges require Multi-Angle or Backscatter geometries. In dense sludge, particles block light from reaching a 90-degree detector. Backscatter optics solve this by reading the light bouncing straight back off the dense particle wall.
Fluctuating process conditions demand intelligent electronics. When evaluating sensors, look for robust auto-ranging capabilities. These instruments dynamically shift their measurement scales on the fly. If turbidity suddenly drops from 800 NTU to 10 NTU, the sensor adjusts its internal amplifier gain. This preserves high-end capacity during spikes while maintaining tight resolution during quiet baseline periods. It prevents the need to install multiple probes in a single pipeline.
The sensor housing must survive your process chemistry. Standard plastics degrade quickly in harsh chemical baths. You must select housing materials based on the corrosiveness and temperature of the process fluid. Common materials include:
SS316L (Stainless Steel): Excellent for general water and wastewater applications.
Titanium: Required for seawater intakes or highly corrosive brine environments.
PPS (Polyphenylene Sulfide): Ideal for aggressive chemical dosing lines where metals quickly pit and fail.
High turbidity inherently equals high particle accumulation. An industrial turbidity probe deployed in wastewater will inevitably face severe fouling. Suspended solids, oils, and biological growth quickly coat the optical windows. Once the lens clouds over, your data becomes completely unreliable. The system will report falsely high turbidity levels. Therefore, deploying a sensor in heavy wastewater without a proactive maintenance strategy guarantees eventual failure.
Active cleaning mechanisms preserve your data integrity. You generally choose between two primary technologies:

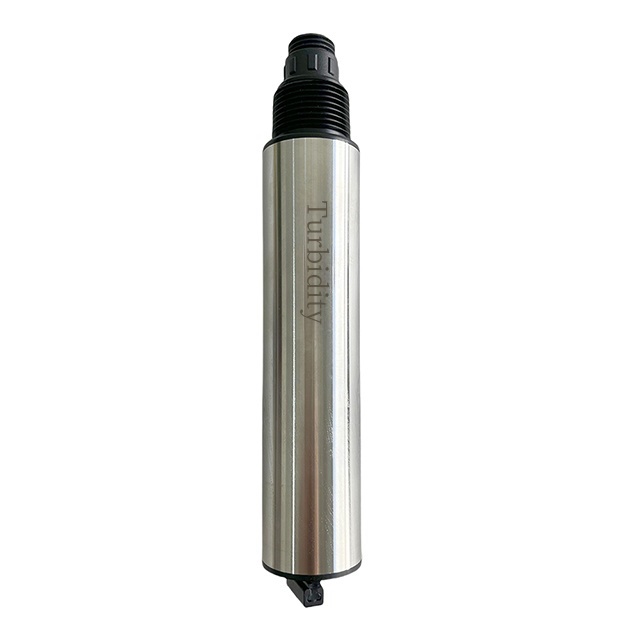

Mechanical Wipers: These systems drag a durable rubber or silicone blade across the optical window. They work best for clearing bio-fouling, algae, and sticky industrial sludges.
Compressed Air/Water Blast: These systems shoot high-pressure bursts over the lens. They work best for highly abrasive environments containing sand or grit. Abrasive particles would otherwise degrade mechanical wiper blades and permanently scratch the sapphire lens.
Where and how you install the probe directly impacts fouling rates. You must carefully control fluid dynamics around the sensor head. The three common architectures each present unique challenges.
Inline Pipe Insertion: Placing the probe directly inside the process pipe. You must ensure flow velocity remains high enough to sweep particles away, but low enough to prevent cavitation bubbles. Bubbles reflect light and cause massive artificial turbidity spikes.
Bypass Flow Cell: Rerouting a small sample stream through a dedicated chamber. This allows operators to easily isolate the sensor for cleaning without shutting down the main pipeline. It also stabilizes turbulent flows.
Open Basin Immersion: Suspending the probe directly into a tank or channel. You must place the sensor away from dead zones where heavy particulates settle artificially. Proper depth placement ensures you measure a representative sample.
Modern industrial facilities are rapidly transitioning away from legacy analog systems. Traditional 4-20mA signals carry basic measurement values but lack intelligent diagnostics. Digital smart sensors utilizing protocols like Modbus RTU or SDI-12 offer massive advantages. A digital digital signal transmits the exact NTU reading alongside critical health data. Your SCADA system can receive specific error codes, such as a "wiper jammed" alert or a "low LED intensity" warning. This transforms reactive repairs into proactive maintenance.
Successful turbidity sensor integration requires strict electrical planning. You must account for specific field conditions. Ground loop isolation represents a critical requirement. Differential potentials between distant tanks and the main SCADA panel create phantom currents. These currents distort analog signals, leading to phantom turbidity spikes. You must use isolated transmitters or switch entirely to digital outputs. Additionally, consider power consumption carefully. Remote, battery-powered telemetry stations require sensors with intelligent sleep modes to conserve energy between reading cycles.
Digital digital data feeds unlock advanced process automation. Reliable online water monitoring supports complex predictive maintenance algorithms. For example, continuous tracking of influent turbidity allows automated chemical dosing systems to adjust in real-time. If the sensor detects a sudden spike in suspended solids, the PLC instantly increases coagulant injection. This prevents under-dosing during storms and saves expensive chemicals during clear-water periods. The sensor essentially becomes the central nervous system of your treatment strategy.
You must document your exact operational parameters before looking at catalogs. Record your baseline NTU during normal operations. Identify your historical peak spikes from past storm events or process upsets. Note the maximum fluid temperature and outline the chemical composition. This documentation directly dictates your required span, optical geometry, and housing material.
Determine how you will use the generated data. If the sensor data strictly informs internal process control, you have flexibility in choosing methodologies like ISO 7027. However, if you submit the data for agency compliance reporting, you must strictly follow mandated standards. Some municipal permits explicitly require EPA 180.1 compliant instruments. Failing to verify this wastes significant time and resources.
Look well beyond the initial installation phase to calculate your ongoing operational burden. Different probes demand vastly different maintenance routines. You must calculate the frequency of replacing mechanical wiper blades or air compressor filters. Factor in the volume of calibration standards, such as Formazin or polymer beads, required per quarter. Finally, estimate the technician hours needed to safely extract, clean, and recalibrate the probe. A sensor requiring weekly manual scrubbing demands far more labor than a self-cleaning digital model.
Accurate turbidity measurement is certainly not a one-size-fits-all endeavor. Specifying the correct range protects your baseline resolution while safely accommodating process upsets. You avoid dangerous data clipping and eliminate erratic low-end noise. A poorly specified sensor simply generates confusion, but a correctly matched probe drives true process optimization.
We strongly recommend prioritizing sensors that comfortably match your historical data peaks. You should utilize appropriate optical paths, such as backscatter for heavy sludge, and implement robust self-cleaning mechanisms. Transitioning to digital output protocols further guarantees clean, actionable data for your PLC.
Take immediate action to secure your measurement strategy. Consult with an application engineer to review your process P&ID today. Request a detailed technical proposal for an application-matched industrial turbidity probe, and eliminate your operational blind spots for good.
A: No, it generally cannot. Wide-range sensors sacrifice decimal-level precision at the extreme low end. Dynamic range limitations mean the internal electronics scale for massive particle loads. This scaling introduces electronic noise at near-zero levels. If your process requires tracking 0.1 NTU shifts, you need a dedicated low-range instrument. Relying on a heavy wastewater probe for clean effluent leads to erratic baseline data.
A: You should specify ISO 7027 (infrared) for industrial wastewater. Infrared light ignores sample color, preventing false readings in dyed or chemically treated water. Conversely, EPA 180.1 uses a white light source. Color heavily absorbs white light, which skews data. However, EPA 180.1 remains strictly mandated for certain US municipal drinking water reporting. Always verify regulatory compliance requirements first.
A: Calibration frequency depends heavily on your specific measurement range and environmental fouling rate. Clean applications, like potable water, usually require quarterly checks. Heavy wastewater applications demand monthly verification. Even if your sensor utilizes auto-cleaning wipers, baseline drift occurs over time. You must periodically verify the probe against known Formazin or polymer bead standards. Regular cleaning extends the interval, but physical verification remains essential.
