S600-MT
LEADMED
Product Description

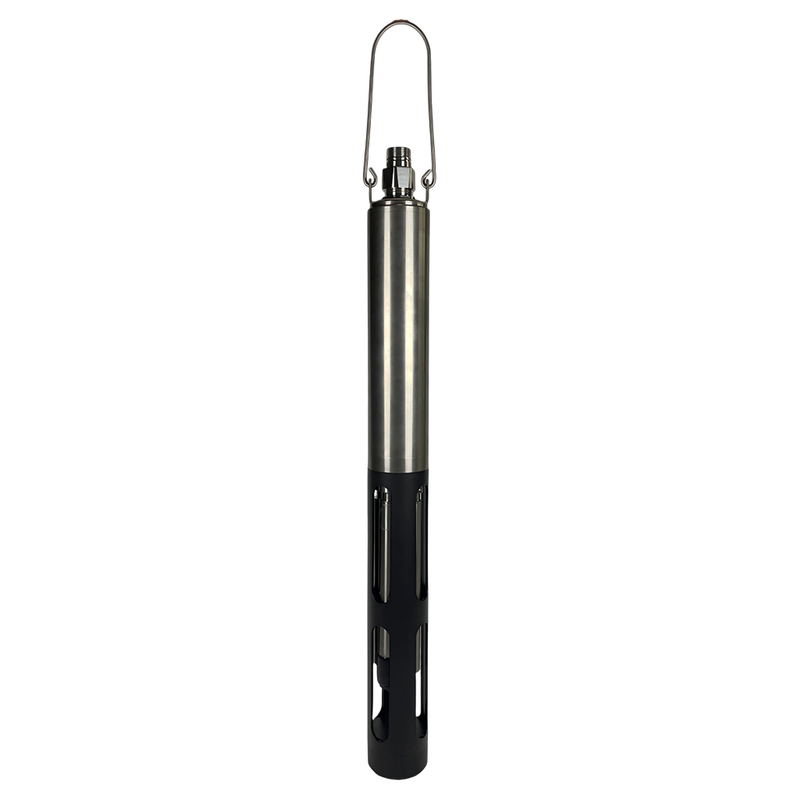

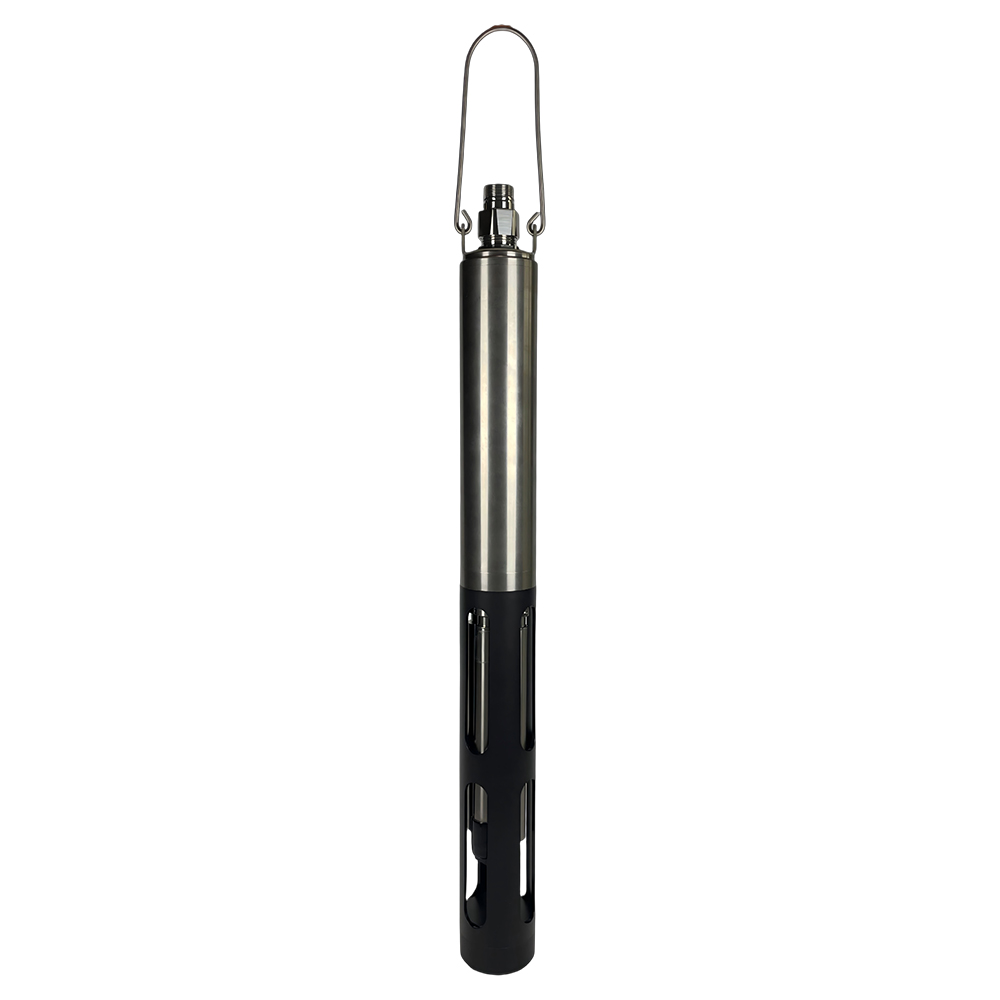

S600-MT 49mm thinner multiparameter water quality sensor is suitabel for narrow field-deployable monitoring technology, integrating 6+ parameters ( pH, ORP, Conductivity, Temperature, Dissolved Oxygen, Turbidity) into a single, streamlined probe with a diameter 49mm, Other parameters are also available: Chlorophyll, Blue-green Algae, Salinity, Oil-in-water, TSS, NH4+, NO3-, K+, Cl- and etc.
Designed for high-resolution profiling and confined-space deployments, it delivers laboratory-grade accuracy in a compact, robust package.
Key Features
✔ Ultra-Slim Design: 49mm diameter (fits standard 2" pipes)
✔ Multi-Parameter Array:
* pH (0–14, ±0.1 accuracy)
* ORP (±1999 mV, ±20 mV )
* Conductivity (0–200 mS/cm, ±1%)
* Dissolved Oxygen (0–20 mg/L, optical/electrochemical)
* Temperature (-5–+50°C, ±0.2°C)
✔ Depth-Rated: IP68, 50m/130m/270m depth for option
Deployment Simplified
• Rapid Installation: Dedicated well mount/hanger system
• Cable-Integrated: Depth-marked, reinforced cable
• Plug-and-Play: Pre-calibrated, ready for data logging
Target Applications
✓ Groundwater Contamination Monitoring
✓ Drinking Water Well Compliance
Key Features
Specification | Details |
Size | Φ49mm*444mm ( length) |
Weight | 1.2KG |
Main Material | POM+316 Stainless Steel |
O ring: viton ring+ rubber ring | |
Cable: PVC | |
Waterproof Rate | IP68 |
Measuring parameters | Standard: Temperature, Conductivity, pH/ORP, Turbidity, Dissolved Oxygen |
Data Output | RS 485. Modbus; |
| Power | DC 12~24V |
Storage Temperature | -20~+60℃（pH/ORP storage temperature 0～60℃） |
Working Temperature | 0~50℃ |
Pressure Range | Sensor Probe ≤0.6Mpa; Sensor Body≤2Mpa |
Cable Length | 5m standard cable, other length can be optional; |
Guarantee Period | Sensor Body 12 months; pH/ORP probe 12 months; Ion sensor: 6 months; DO membrane cap 6 months; |
