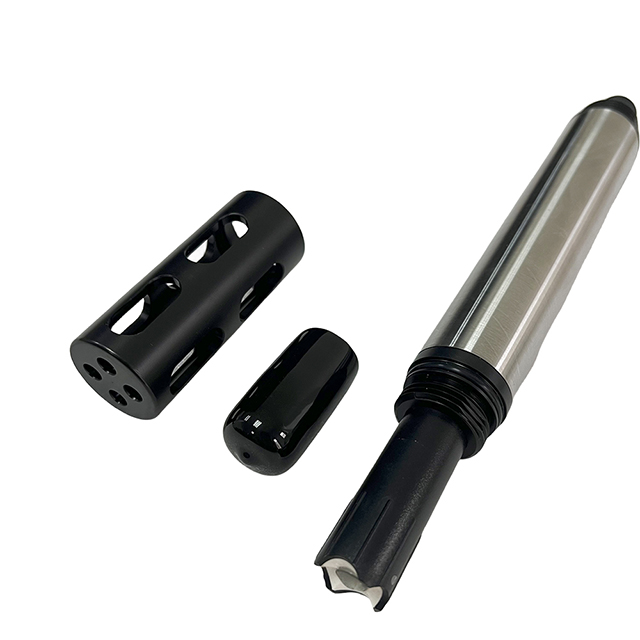

Industrial automation continuously shifts from legacy 4-20mA analog signals to RS485 Modbus RTU protocols. This necessary transition ensures digital reliability across complex control systems. Deploying a water pH sensor in high-noise environments presents unique operational complexities. In these challenging industrial conditions, data fidelity directly impacts chemical dosing accuracy. It also affects strict regulatory compliance and overall process yield.
We wrote this engineering-focused guide to help you systematically navigate these exact communication challenges. You will discover a sterile, step-by-step roadmap for hardware wiring and Modbus protocol configuration. We also break down PLC and SCADA integration requirements. You can use these proven strategies to ensure seamless data acquisition without experiencing any signal degradation. Mastering these digital communication frameworks guarantees a resilient and highly responsive fluid processing system.
Hardware Foundation: Proper pH sensor installation requires strict adherence to RS485 topology, utilizing twisted-pair cables and proper grounding to mitigate industrial noise.
Protocol Precision: Successful integration hinges on matching baud rates, parity, and correctly addressing Modbus holding/input registers (including handling IEEE 754 floating-point byte orders).
System Resiliency: True digital integration goes beyond data polling; it requires configuring PLC/SCADA logic to handle communication timeouts, sensor calibration states, and fault diagnostics.
Risk Mitigation: Galvanic isolation is non-negotiable in water processing systems to prevent ground loops that permanently damage sensor circuitry.
Traditional analog 4-20mA sensors suffer significantly from signal attenuation. This signal degradation happens primarily over long cable runs found in large processing plants. Analog systems also require entirely separate wiring loops for basic calibration and system diagnostics. Furthermore, calibrating an analog loop often requires two technicians working simultaneously. One person manually adjusts the transmitter at the tank, while another monitors the PLC scaling. Moving to a digital protocol solves these exact logistical issues. You easily justify this upgrade when your system demands multi-parameter data. Facility operators often need raw pH, temperature compensation data, and sensor health metrics simultaneously. Delivering all these variables over a single twisted-pair bus drastically simplifies your physical architecture. Scalability across multiple tanks serves as another strong justification for upgrading.
We evaluate this upgrade across several key dimensions. First, consider data depth. Analog systems provide only one single process variable. Modbus delivers raw pH, temperature, and crucial diagnostic error codes directly to the master. Second, analyze system scalability. You can daisy-chain up to 32 devices on a single RS485 network. This topology reduces heavy cabling infrastructure. Finally, understand the implementation reality. Deploying a Modbus industrial water sensor requires slightly more upfront PLC programming logic. However, this method drastically reduces long-term maintenance blind spots.
Evaluation of Sensor Communication Characteristics
Evaluation Dimension | Analog (4-20mA) | Digital (Modbus RTU) |
|---|---|---|
Data Depth | Single variable (pH only) | Multi-parameter (pH, Temp, Diagnostics) |
Scalability | Point-to-point wiring required | Daisy-chain up to 32 devices |
Implementation Logic | Basic scaling block | Requires register parsing and byte swapping |
Calibration Method | Manual hardware adjustments | Digital register writing via PLC/HMI |
Establishing a robust physical layer represents your first crucial step. You must finalize hardware connections before touching any software configuration. Industry standards define a strict 4-wire RS485 configuration. You connect Power (VCC), Ground (GND), Data A (Non-inverting), and Data B (Inverting). We strongly emphasize using shielded twisted pair (STP) cables. Shielding protects the highly sensitive microvolt signals inherent during proper pH sensor installation.
Implementation considerations demand extreme attention to galvanic isolation. Water inherently acts as a strong electrical conductor. Ground loops frequently form between the sensor, the metal tank, and your central PLC. These unmanaged ground loops skew pH readings severely. They can also permanently fry the Modbus transceiver circuitry. We highly recommend utilizing isolated power supplies. Inline RS485 isolators provide another excellent layer of electrical protection. Additionally, you must properly specify termination resistors. Use a 120-ohm termination resistor at the far end of the bus line. This simple component prevents harmful signal reflection over long distances, typically exceeding 100 meters.
You must configure mandatory protocol handshake parameters precisely. Standard industrial defaults operate uniformly across most control systems. Set your hardware to Baud Rate: 9600, Data Bits: 8, Parity: None, and Stop Bits: 1. Engineers universally refer to this as 9600, 8, N, 1. Next, handle your slave ID assignments. Every Modbus pH probe on the bus requires a unique Slave ID ranging from 1 to 247. You must change factory default IDs via broadcast commands before final field deployment.
Navigating register maps properly prevents frustrating data errors. You need to distinguish between different function codes clearly to read and write variables.
Holding vs. Input Registers: Clarify which function codes to use. Use Holding Registers (Function Code 03) for writing calibration commands and altering device parameters. Use Input Registers (Function Code 04) for reading live pH data safely.
Data Types and Parsing: Address the most common developer roadblock immediately. You must reconstruct 32-bit floating-point numbers from two distinct 16-bit Modbus registers. Use the standard IEEE 754 format for accurate value parsing. A pH value of 7.00 spans across two consecutive memory addresses.
Byte Swapping: PLC architectures process data bytes differently across different brands. Note the strict necessity of testing Big-Endian versus Little-Endian word orders. For instance, a floating-point number formatted as ABCD might read as CDAB on certain programmable logic controllers. You must match the specific byte order to your central PLC architecture to prevent wildly inaccurate readings.
Your integration architecture defines the critical data pathway. Data flows seamlessly from the physical probe up to the supervisory level. Proper PLC logic dictates the success of this communication bridge. You should use native Modbus Client or Master function blocks. Industry-standard blocks exist natively in Simulink, Siemens TIA Portal, and Allen-Bradley environments. You must also set appropriate polling frequencies carefully. Chemical pH changes represent inherently slow, non-linear process variables. Polling the sensor every 1 to 2 seconds prevents unnecessary network congestion. This balanced frequency guarantees data reliability without sacrificing control loop responsiveness.
SCADA visualization requires accurate tag mapping. You map the processed PLC tags directly to the SCADA HMI interface. Furthermore, developing robust fault handling logic is absolutely critical. Design specific logic, such as a watchdog timer, to trigger a distinct "Comm Fault" alarm. This alarm must activate if the sensor stops responding entirely. Do not configure the system to hold the last known pH value. Holding stale data easily misleads your PID controllers, leading to catastrophic chemical over-dosing. Finally, embed remote calibration triggers into the HMI interface directly. This feature provides massive convenience for maintenance operators actively managing continuous processes.
Deploying a structured verification framework accelerates field diagnostics. Follow step-by-step diagnostic logic when the control system reads a "Timeout" or an "Exception Code". We strongly recommend bench-testing the sensor first. Connect the probe utilizing a simple USB-to-RS485 adapter. Run diagnostic PC software like Modbus Poll or QModMaster. Perform this essential bench test before writing any complex PLC code.
Evidence shows specific failures occur repeatedly in the field. Watch out for these common integration roadblocks:
A/B Line Reversal: Swapping the RS485 A and B lines remains the most common hardware error. If communication fails instantly, verify your wire colors and terminal blocks immediately.
Voltage Drop: Troubleshoot power supply issues rigorously. Daisy-chaining multiple sensors on long cable runs causes significant voltage drops. Measure the voltage directly at the farthest sensor terminal to ensure adequate power delivery.
Interference: Identify frequency drive (VFD) noise leaking onto the network. Implement proper shield grounding techniques to block this interference. You must ground the cable shield at only one end of the control cabinet to prevent ground loops.
Integrating a digital sensor shifts the fundamental engineering complexity. The challenge moves away from physical hardware wiring toward meticulous software configuration. This transition demands rigorous attention to galvanic isolation, accurate register mapping, and robust fault logic. Facilities must prioritize precise data and scalable architectures. For these modern plants, the upfront integration effort heavily outweighs any legacy analog constraints. You eliminate maintenance blind spots and secure highly reliable process data.
Take immediate action to secure your control network. Encourage your automation engineers to review specific sensor datasheets thoroughly. Verify your internal PLC Modbus block compatibility before purchasing hardware. Finally, consult directly with an application engineer. They will help you select the appropriate isolated sensor for your unique fluid processing environment, ensuring optimal performance.
A: Yes. Many PLCs support simultaneous digital and analog inputs seamlessly. However, you must ensure the physical wiring paths remain strictly segregated. This physical separation prevents electrical noise generated by digital communication lines from interfering with the highly sensitive analog signals.
A: Standard RS485 architecture allows for up to 1,200 meters (4,000 feet) in ideal, low-noise conditions with proper terminal termination. For reliable online pH monitoring in noisy industrial plants, keeping runs under 300 meters or using dedicated repeaters is highly advisable.
A: Unlike analog sensors that require manual potentiometer adjustments on a transmitter, Modbus sensors are calibrated entirely digitally. This process involves placing the probe in standard buffer solutions (e.g., pH 4.0, 7.0). You then write specific calibration command values to designated Modbus Holding Registers via your connected PLC or a diagnostic PC utility tool.
