Dissolved oxygen is one of the most direct signals of water health. In aquaculture, it affects fish feeding, stress, disease risk, and survival. In wastewater treatment, it guides aeration control, biological activity, discharge stability, and energy use. When the reading is wrong, operators do not just lose a number on a screen. They lose confidence in the whole process.
This article has been updated to describe a fluorescence dissolved oxygen sensor, also known as an optical DO sensor. The measuring principle is not based on electrode consumption of oxygen. It uses fluorescence quenching technology, where oxygen affects the light signal from an oxygen-sensitive sensing layer. That difference matters in real projects, because optical measurement reduces routine maintenance, avoids oxygen consumption during measurement, and supports more stable monitoring in aquaculture ponds, wastewater tanks, rivers, lakes, and online water quality stations.
Correct technology: This DO sensor uses fluorescence quenching, not an electrochemical consuming method.
Lower maintenance: Optical measurement does not require routine diaphragm or electrolyte replacement.
No oxygen consumption: The sensor measures dissolved oxygen without consuming oxygen at the probe surface.
No flow speed limit: Optical DO measurement is better suited to still or slow-moving water than consuming electrode methods.
Digital integration: RS485 output and Modbus communication make it practical for online monitoring systems.
Application fit: The technology is suitable for aquaculture, surface water, groundwater, industrial water, and wastewater monitoring.
Dissolved oxygen, often shortened to DO, measures how much oxygen is available in water for biological and chemical activity. In a fish pond, shrimp pond, raceway, reservoir, or recirculating aquaculture system, low DO can stress aquatic animals quickly. Fish may stop feeding. Growth slows. Disease pressure rises. In severe cases, a sudden oxygen crash can cause mass mortality before staff have enough time to react.
Wastewater treatment plants face a different problem. They need enough oxygen to support aerobic microorganisms, but they cannot afford to over-aerate every basin all day. Aeration often becomes one of the largest energy users in a treatment process. A reliable DO reading helps operators adjust blowers, surface aerators, and control systems more carefully. Too little oxygen risks poor treatment. Too much oxygen wastes energy and may disturb process balance.
That is why continuous DO monitoring has become more than a laboratory task. It is now part of daily process control. A stable dissolved oxygen sensor helps operators see changes early, compare zones, log trend data, and make safer control decisions. In practice, the sensor must not only measure accurately in clean water. It must keep working in water with sludge, algae, suspended solids, bubbles, changing temperature, and field wiring conditions.
Aquaculture sites need DO data because oxygen changes throughout the day. Photosynthesis, feeding load, stocking density, weather, water exchange, and aeration all affect oxygen levels. Early morning readings can be very different from afternoon readings. A fluorescence DO sensor gives staff a continuous view instead of a few manual test points.
For farm managers, the value is practical. They can start aerators before DO drops to a dangerous level. They can compare different ponds. They can find whether a pump, blower, or diffuser is underperforming. They can also document water conditions when growth performance changes. We often see DO monitoring become the first warning sign before a visible water quality problem appears.
In wastewater treatment, DO monitoring supports aeration management, nitrification, denitrification control, sludge health, and process troubleshooting. A single basin may have different oxygen needs in different zones. Online sensors allow operators to adjust equipment based on real process data instead of fixed-time operation.
When the sensor is stable, facilities can reduce guesswork. They can avoid running blowers harder than necessary. They can also detect abnormal oxygen demand when influent load changes. In this sense, the DO sensor becomes part of a larger control strategy, not just a probe installed in water.
A fluorescence DO sensor uses an optical sensing layer that responds to oxygen. The sensor sends excitation light to this layer. The sensing material then emits a return light signal. Oxygen molecules interact with the excited material and reduce, or quench, the light response. By measuring the change in signal, the instrument calculates the dissolved oxygen concentration.
The important point is simple: the sensor reads an optical signal. It does not need an electrochemical reaction that consumes oxygen during measurement. It also does not depend on filling electrolyte or replacing a traditional diaphragm as a normal maintenance routine. That is why optical DO sensors are often chosen for online monitoring where technicians want stable data with fewer service interruptions.
Leadmed's DO product information describes the measurement as a fluorescence quenching principle. It calculates oxygen concentration by measuring the phase difference between excitation light and reference light, then comparing it with internal calibration data. This is a key distinction. The sensor does not need to draw oxygen through an electrode reaction to produce a reading.
For field users, this means the probe can measure in slow water more reliably than oxygen-consuming methods. It also means the sensor is less affected by the local oxygen depletion that can occur around a consuming electrode surface. Put simply, it reads the oxygen effect on light, not oxygen consumed at a metal electrode.
The optical sensing cap is one of the most important parts of the probe. It contains the oxygen-sensitive material that responds to the excitation light. In normal use, operators should keep this surface clean and avoid scratches, heavy scaling, or thick biofilm. The sensor can be low-maintenance, but it is not maintenance-free. Clean optics still matter.
This is where many field problems start. A layer of algae, sludge, oil, or mineral scale can block the optical path. The sensor may still power on, but the reading can drift. A sensible maintenance plan focuses on gentle cleaning, visual inspection, and calibration checks rather than routine electrolyte service.
Aquaculture ponds and wastewater basins rarely offer perfect measuring conditions. Water can be muddy, full of suspended solids, rich in organic matter, or highly variable in temperature. A fluorescence DO sensor is useful because it avoids several common limitations of older consuming measurement methods.
The sensor does not consume oxygen while measuring. This matters in low-flow, still, or slow-moving water. In fish ponds, canals, reservoirs, and some treatment tanks, water movement may not always be strong around the probe. A consuming method can create a small depleted zone near the sensor surface if water movement is weak. Optical fluorescence measurement avoids that specific issue.
In practical terms, operators do not need to design every installation around a strict minimum sample velocity. They still need good installation practice, of course. The probe should be placed where the water represents the process. It should not sit in dead corners, thick sludge beds, or areas filled with air bubbles. Still, the absence of oxygen consumption gives the technology more flexibility.
Leadmed's product characteristics state that the optical DO sensor has no oxygen consumption and no flow speed limit. This is highly relevant for aquaculture and environmental water monitoring, where flow conditions may change with pumps, weather, pond design, or seasonal operation.
This does not mean installation position no longer matters. It does. A sensor installed in heavy sludge or surface foam cannot represent the whole basin. But it means the measurement principle itself is not dependent on a forced flow rate to replenish consumed oxygen at the sensing surface.
Traditional consuming DO technologies often need diaphragm care, filling solution checks, or more frequent rebuilding. By contrast, the Leadmed fluorescence DO sensor lists low maintenance cost and no need to replace the diaphragm and electrolyte. That simplifies field work for teams managing many probes across ponds, tanks, or monitoring stations.
Less service also means fewer chances for human error. A technician does not need to refill a small internal chamber, remove trapped bubbles, or stretch a thin film evenly. Field staff can focus on cleaning the optical surface, checking cable condition, confirming calibration, and reviewing data trends.

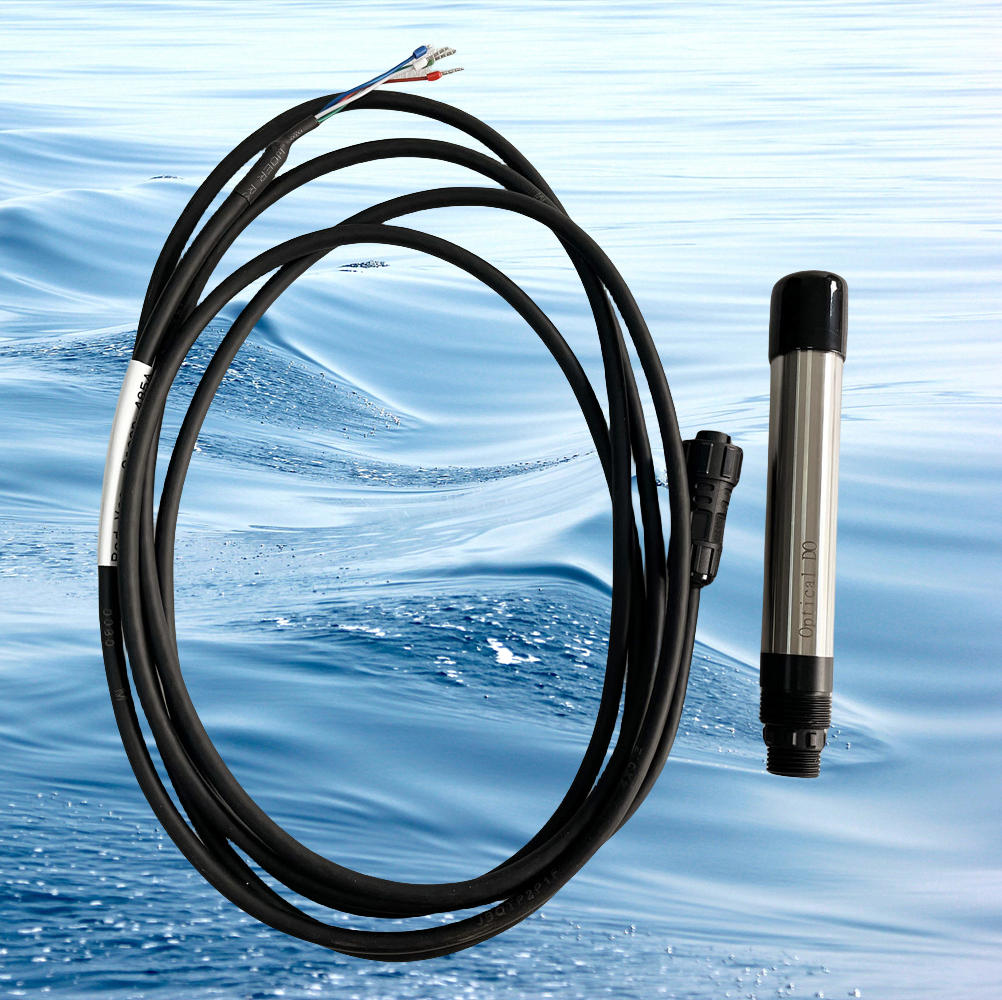

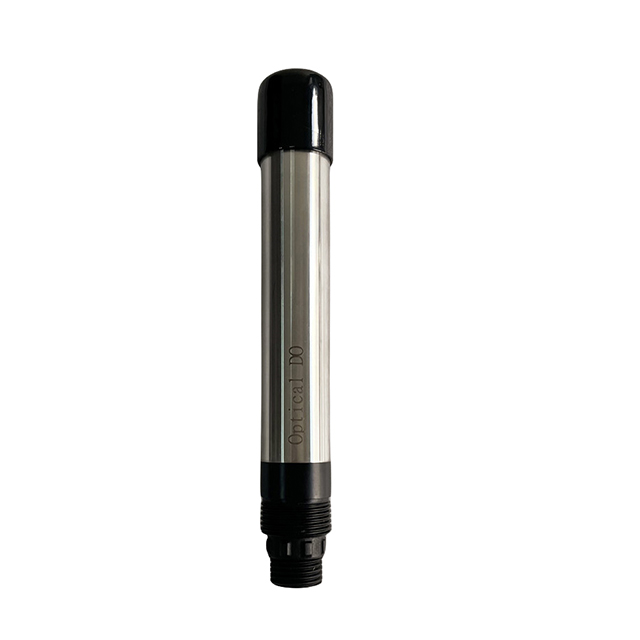

The Leadmed S12-A dissolved oxygen sensor is designed for online water quality monitoring. Its product page lists a fluorescence quenching principle, RS485 output, Modbus communication, optical measurement, automatic temperature compensation, and no oxygen consumption. These are useful features for sites that need continuous data rather than occasional laboratory checks.
Item |
Leadmed DO Sensor Information |
|---|---|
Measurement principle |
Fluorescence quenching |
Model |
S12-A |
Brand |
LEADMED |
Output |
RS485, Modbus |
Measuring range |
0–200% saturation, 0–20 mg/L |
Accuracy |
< ±3% |
Waterproof rate |
IP68 |
Working temperature |
0°C to 50°C |
Pressure range |
≤6 bar |
Cable |
5 m standard, optional other lengths |
These specifications make the sensor suitable for surface water, groundwater, industrial water, wastewater, and other water quality monitoring applications. The RS485 Modbus output also helps system integrators connect the probe to controllers, data loggers, wireless monitoring stations, and multi-parameter platforms.
The listed material combination includes 316 stainless steel and POM, with sealing parts such as a viton ring and rubber ring. For field monitoring, these details matter. A sensor may face long immersion, moving water, suspended solids, and routine handling by technicians. The housing must support stable measurement while protecting the optical and electronic components inside.
IP68 protection also matters because many DO probes remain submerged for long periods. Installers should still protect cable joints, connectors, and junction boxes. A waterproof probe can fail if the cable entry, extension wiring, or control cabinet is poorly installed.
A fluorescence DO sensor is useful across several water monitoring scenarios. The same measurement principle can support farm oxygen control, river monitoring, wastewater aeration management, and industrial discharge observation. The main difference is not the sensor principle. It is the installation environment, cleaning schedule, and control target.
Fish and shrimp farms need quick awareness when oxygen begins to fall. At night or before sunrise, oxygen can drop faster than staff expect. After feeding, biological oxygen demand may increase. After weather changes, pond stratification and mixing patterns may change. A fluorescence DO sensor gives managers more continuous visibility.
The sensor can also help operators compare aeration zones. One pond may appear normal at the surface while deeper or far-corner areas show lower oxygen. With online monitoring, farm teams can decide where to add aerators, when to start equipment, and whether a water exchange or feeding adjustment is needed.
In aeration basins, DO control is tied directly to blower operation and biological treatment efficiency. Operators want enough oxygen for microbes, but they do not want unnecessary aeration. A stable optical DO signal allows process teams to adjust equipment with more confidence.
In some plants, DO sensors work with PLC or SCADA systems. In smaller plants, staff may use sensor data to make manual adjustments. Either way, the probe should be placed in a representative location. It should avoid areas with extreme turbulence, trapped air bubbles, heavy foam, or settled sludge that does not reflect the main treatment zone.
Rivers, lakes, reservoirs, and groundwater monitoring points can change slowly over time. Here, long-term stability and low maintenance become important. Optical DO technology is helpful because it supports continuous measurement without requiring frequent electrode service.
For environmental monitoring stations, the sensor may operate with turbidity, conductivity, pH, chlorophyll, blue-green algae, or ammonia nitrogen sensors. This multi-parameter approach gives a more complete picture of water quality. DO alone is important, but it becomes far more useful when interpreted with temperature, salinity, pH, and pollution indicators.
Even a good sensor can produce poor data if installed badly. Optical measurement is forgiving in some ways, but not magical. It still needs a representative sampling position, clean sensing surface, secure wiring, and realistic maintenance planning.
Install the probe where the water represents the process you want to monitor. In aquaculture, avoid placing the sensor too close to one aerator unless that is the specific zone you want to control. In wastewater, avoid dead corners, heavy foam, and areas where solids settle thickly around the probe.
A good location gives stable, meaningful data. A poor location creates false confidence or false alarms. In many projects, the best solution is not one sensor. It is a small monitoring layout that reflects different process zones.
Field failures often start outside the sensing head. Cables can be pulled, crushed, bitten by animals, exposed to chemicals, or bent too tightly. Junction boxes may collect water if they are not sealed well. Power and communication cables may also suffer interference if routed carelessly.
Use proper cable protection. Keep connectors dry where possible. Leave service loops for removal and cleaning. Label cables clearly. These simple details save time when technicians need to check a sensor at night, during a storm, or during a process alarm.
The sensor's RS485 Modbus output helps connect it to online monitoring equipment. A Dissolved Oxygen Sensor can send data to controllers, data acquisition systems, or remote monitoring platforms. This allows operators to track trends, store records, and set alarms.
Before commissioning, verify the communication address, baud rate, wiring polarity, power supply, and data scaling. Many sensor problems are not caused by the probe itself. They come from wrong wiring, loose terminals, mismatched communication settings, or unstable power.
Optical DO sensors reduce routine service, but they still require calibration checks and cleaning. In field work, the goal is not to touch the sensor as little as possible. The goal is to maintain trustworthy data with the least unnecessary intervention.
The Leadmed product information lists one-point or two-point calibration. In many field applications, air calibration is a common check for the high point. For stricter low-oxygen measurement, users may also use a zero-oxygen solution when the process requires it. The right schedule depends on water quality, fouling level, and data requirements.
A pond with heavy algae may need more frequent cleaning and checking than a clean-water monitoring station. A wastewater basin with grease, sludge, or high organic loading may need more attention than a clear river station. The sensor technology lowers service burden, but the water environment still controls the maintenance rhythm.
The sensing surface should be cleaned gently. Avoid hard scraping, sharp tools, or abrasive materials that could damage the optical cap. Use suitable soft cleaning materials and follow the supplier's guidance. If the surface is coated with biofilm, algae, or mineral deposits, remove buildup before judging calibration drift.
A clean sensor gives the calibration process meaning. Calibrating a dirty sensor often hides the real problem. It may also create a false baseline that later causes confusing field readings.
Task |
Why It Matters |
|---|---|
Inspect the sensing surface |
Biofilm or sludge can block the optical signal. |
Check cable and connector |
Water ingress or loose wiring can cause unstable data. |
Confirm RS485 communication |
Wrong settings can appear like sensor failure. |
Clean gently before calibration |
Calibration should be performed on a clean optical surface. |
Review trend data |
Slow drift is easier to notice in historical curves. |
Bad DO data usually comes from a mix of sensor condition, installation position, process change, and communication setup. When readings look strange, do not assume the sensor is wrong immediately. Check the field conditions first.
Biofouling is common in aquaculture and wastewater. A layer of algae, bacteria, slime, or suspended solids can cover the sensing surface. This affects the optical signal and may cause drift. Cleaning frequency should match the site. Warm water, nutrient-rich ponds, and wastewater tanks usually need more frequent inspection.
Air bubbles can cause unstable readings. In aeration tanks, avoid installing the probe directly where bubbles constantly strike the sensing surface. In aquaculture, avoid placing it in a position where aerator turbulence makes readings jump without reflecting the pond's general DO level.
DO concentration changes with temperature, so automatic temperature compensation is important. The Leadmed DO sensor lists automatic temperature compensation, which supports stable measurement across changing field conditions. Operators should still make sure the sensor has enough time to match water temperature when moved between locations.
Salinity and pressure can affect DO interpretation. For aquaculture, this is especially relevant in brackish water or marine systems. For deeper tanks or special industrial processes, pressure may also matter. The sensor's listed pressure range is ≤6 bar, but the site should still confirm whether the installation depth and process pressure match the product specification.
Choosing a DO sensor is not only about accuracy on a datasheet. It is about whether the sensor fits the whole monitoring task. Different sites need different combinations of range, output, housing material, cable length, power supply, cleaning method, and system integration.
For aquaculture, focus on stable low-oxygen response, practical cleaning, alarm integration, and pond layout. For wastewater, focus on fouling resistance, communication reliability, calibration workflow, and installation position. For surface water monitoring, focus on long-term stability, power consumption, waterproofing, and remote data access.
RS485 Modbus is useful because many monitoring platforms support it. Still, buyers should confirm compatibility before ordering. Check whether the receiving system can read the DO units, temperature values, calibration status, and any diagnostic data that may be available.
The lowest purchase price does not always mean the lowest operating cost. Field labor, sensor downtime, consumables, calibration burden, and false readings can cost more than the probe itself. A fluorescence DO sensor can reduce several routine service tasks, making it attractive for sites with many measuring points or limited maintenance staff.
Beijing Leadmed Technology focuses on water quality sensors and online water monitoring systems. Its DO product category describes advanced optical DO sensors using luminescence quenching technology, with automatic temperature and pressure compensation, minimal maintenance requirements, and long-term stability for aquaculture, environmental monitoring, and wastewater treatment.
For B2B buyers, the value is not only in one probe. It is also in the wider monitoring ecosystem. Leadmed offers multiple water quality sensor categories, including DO, pH/ORP, turbidity, conductivity, chlorophyll, blue-green algae, ammonia nitrogen, salinity, TSS, UVCOD, and monitoring systems. This makes it easier to build a complete water monitoring solution instead of using isolated sensors from unrelated suppliers.
The optical dissolved oxygen sensor is especially useful where teams need continuous data, low maintenance, and integration with digital monitoring platforms. It supports aquaculture managers, environmental agencies, industrial water users, and wastewater operators who need stable DO data for daily decisions.
The original article needed an important correction: this product should be explained as a fluorescence dissolved oxygen sensor, not as a consuming electrode type. That change is not cosmetic. It changes the working principle, maintenance logic, installation expectations, and user benefits.
A fluorescence DO sensor measures oxygen through optical quenching. It does not consume oxygen during measurement. It does not depend on routine diaphragm or electrolyte replacement. It supports stable monitoring in aquaculture, wastewater treatment, environmental water, industrial water, surface water, and groundwater applications.
For buyers evaluating online DO monitoring, the practical question is simple. Can the sensor deliver reliable data with manageable maintenance in real water conditions? Leadmed's Dissolved Oxygen Sensor (DO) answers that need with fluorescence quenching technology, RS485 Modbus output, automatic temperature compensation, IP68 protection, and application coverage across aquaculture and wastewater monitoring.
A: It uses fluorescence quenching technology. Oxygen changes the optical signal from the sensing layer, and the sensor calculates dissolved oxygen from that signal.
A: No. Optical fluorescence measurement does not consume oxygen at the probe surface, which helps it work in slow or still water conditions.
A: The product characteristics state no flow speed limit. Proper installation still matters, but the measurement principle does not rely on oxygen-consuming flow conditions.
A: No routine diaphragm or electrolyte replacement is listed for this optical DO sensor. Users mainly need cleaning, inspection, and calibration checks.
A: It is suitable for aquaculture, surface water, groundwater, industrial water, wastewater, and online water quality monitoring systems.
A: The sensor supports RS485 output and standard Modbus communication, making it practical for controllers, monitoring stations, and remote data systems.
