>> Application

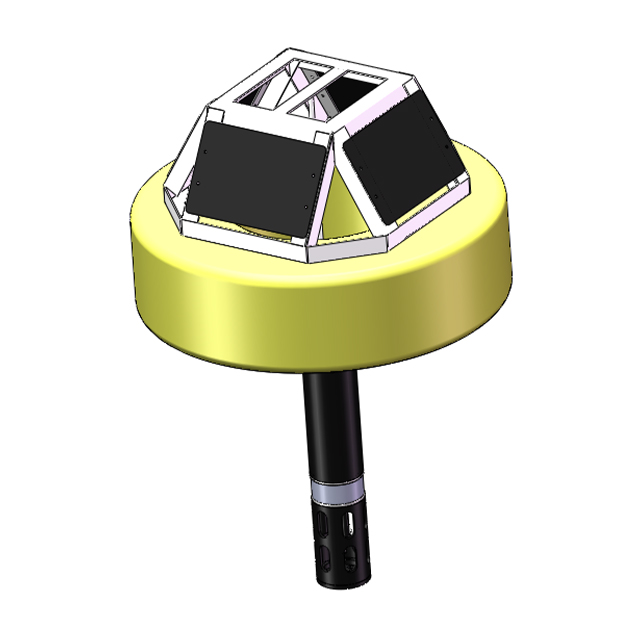

MBS-60 Buoy aquaculture monitoring system, is a set of intelligent aquaculture online monitoring system with the core of LM series multi-parameter sensors, comprehensive use of new sensing technology, IoT technology, automatic control technology, data and software analysis technology. It can simultaneously monitor temperature, dissolved oxygen, pH, ORP ( Redox potential), conductivity and other water quality parameters.
The system features a special self-cleaning design that eliminates bubbles, prevents microbial growth, and is reliable enough to operate in an unattended environment for months without maintenance. Can be widely used in aquaculture water quality monitoring.
>> Characteristics
Intelligent self-diagnosis: the instrument has sensor, low voltage fault self-diagnosis function, can automatically judge the alarm, simple operation.
Self-cleaning: self-cleaning coating and optional wiper structure design, ensure window clean, prevent microbial growth, reduce maintenance frequency;
High integration: all sensors and display transmission units are integrated in one box;
Simple installation: the monitoring part is separated from the buoy body, modular design, convenient installation and replacement;
Convenient maintenance: water quality monitoring sensor and detector separation, convenient replacement after the expiration of life;
Convenient management: it can be managed according to different households.
>> Technical Parameters
Monitoring parameters | principle | Main parameters |
Dissolved oxygen | Fluorescence | Range:0-20mg/L or 0-200% saturability Resolution:0.01mg/L Accuracy:±0.3mg/L |
pH | Glass electrode | Range:0-14pH Resolution:0.01pH Accuracy:±0.1pH |
ORP | electrode | Range:-1999-1999mv Resolution:1mv Accuracy:±20mv |
Temperature | Temperature sensor | Range:0-50℃ Resolution:0.1℃ Accuracy:±0.2℃ |
Conductivity | electrode | Range:1µS/cm-200mS/cm Resolution: 0-1000µS/cm: 0.1µS/cm 1mS/cm-100mS/cm: 0.1mS/cm Accuracy: 1% F.S. |
Turbidity |
Scattering light
| Range:0-4000NTU Resolution:0-10NTU: 0.01NTU; 10-100NTU: 0.1NTU; 100-4000NTU: 1NTU; Accuracy:0-10NTU: ±0.1NTU; 10-100NTU: 2% of reading value or ±0.1NTU; 100-4000NTU: ±5% of reading value |
Chlorophyll | fluorescence | Range:0-400μg/L or 0-100RTF Resolution:0.1 μg/L or 0.1RTF Accuracy:<3%F.S. Detection limit:0.1μg/L |
Ammonia nitrogen | Ion selective electrode | Range:0-100mg/L Resolution:0.1mg/L Accuracy:±3%F.S. |
COD | UV254 | Range:0-200mg/L Resolution:0.5mg/L Accuracy:±5%F.S. |
