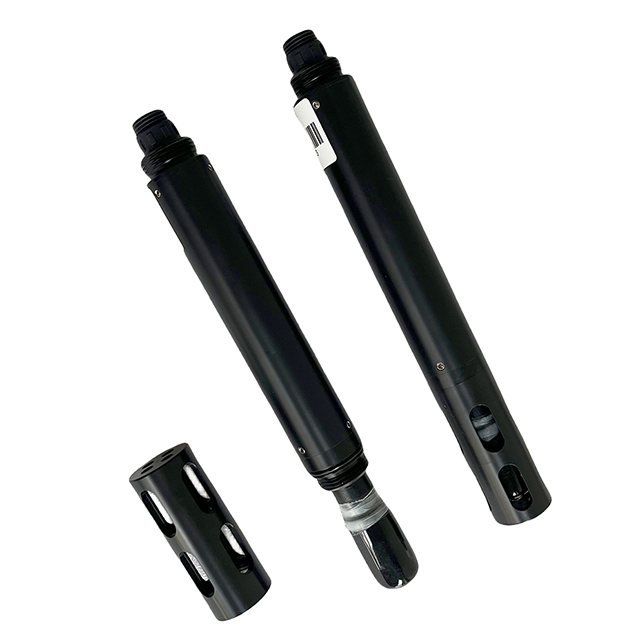

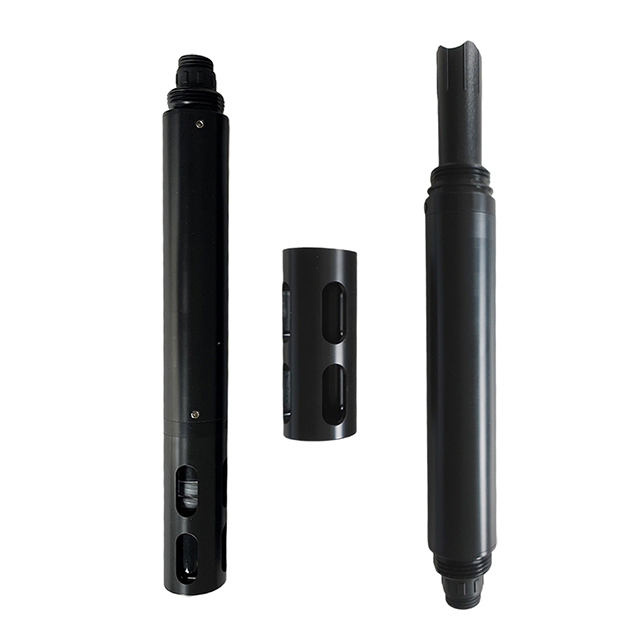

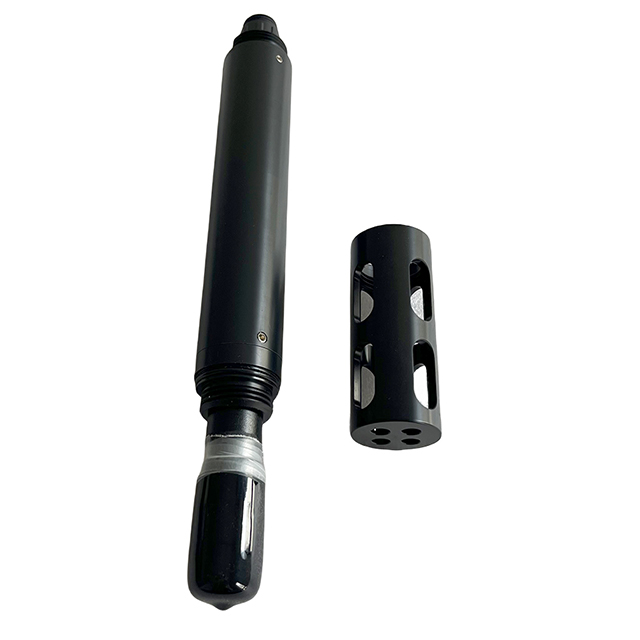

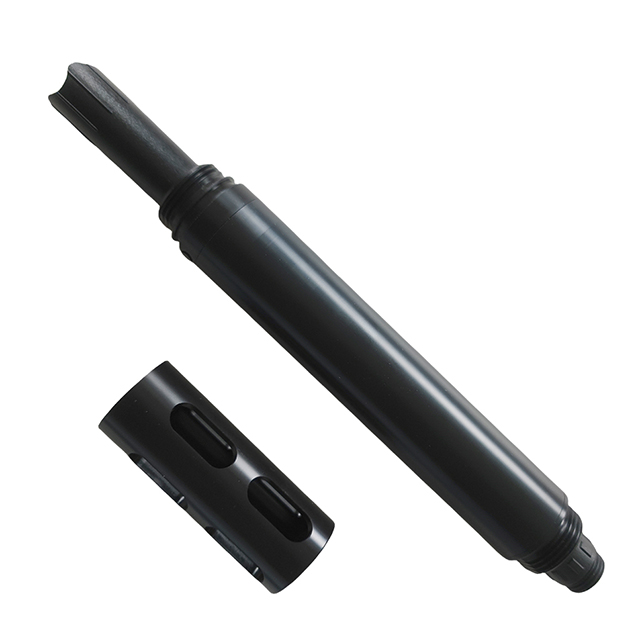

PH Sensor (S14-B)

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

>> Information


S14-B pH sensor adopts high-stability industrial online electrode, built-in temperature sensor for option. Housing material is POM for some applications where stainless steel is not acceptable, works with RS485, MODBUS standard communication protocol. It can be worked as a single parameter sensor, also can be installed inside of a water system for online long-term monitoring water quality.

Suitable for surface water, groundwater, municipal sewage, industrial wastewater, aquarium and other applications.


>> Characteristics


  • Support kinds of installation methods, suitable for many application;

  • Built-in temperature parameter for option;

  • Special structure design extends the service life of the sensor;

  • Flat head micro bubble design of electrode, easy to clean, and more robust;

  • RS485 communication interface, standard Modbus protocol, easy to install.


>> Parameters


Specification Details
Size Φ30mm*286.50mm (length)
Weight 0.3KG
Main Material POM
O ring: viton ring+ rubber ring
Cable: PVC
Waterproof Rate IP68
Measuring Range 0.00~14.00
Measuring Accuracy ±0.1
Resolution 0.01
Data Output RS 485,  Modbus
Power DC 12~24V,  current < 30mA
Storage Temperature 0~+60℃
Working Temperature 0~50℃
Pressure Range ≤0.5Mpa
Calibration Way Two point or three point calibration

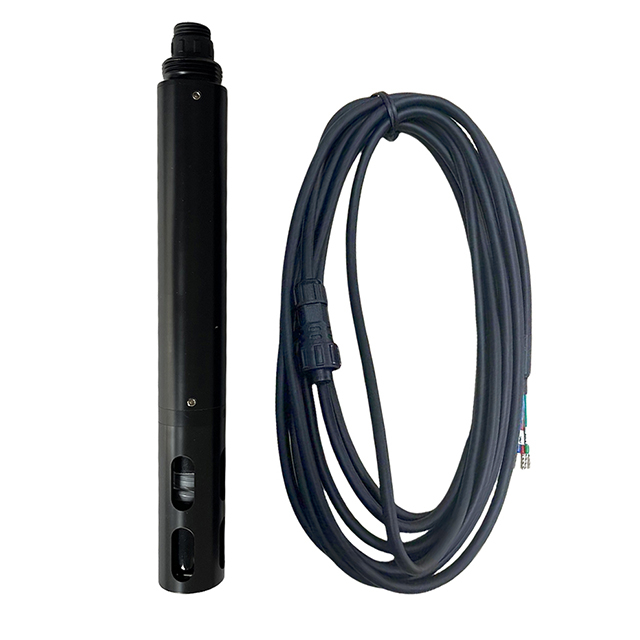

Cable Length 5m standard cable, other length can be optional;
Guarantee Period pH electrode 12 months (special circumstance is not included)

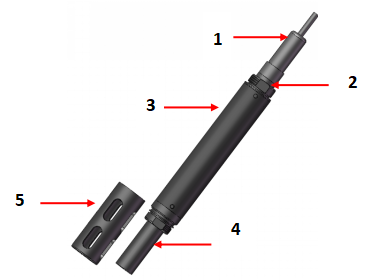

1. plug
2. NPT 3/4 thread
3. Body housing POM
4. Electrode
5. Protective cap
