>> Information

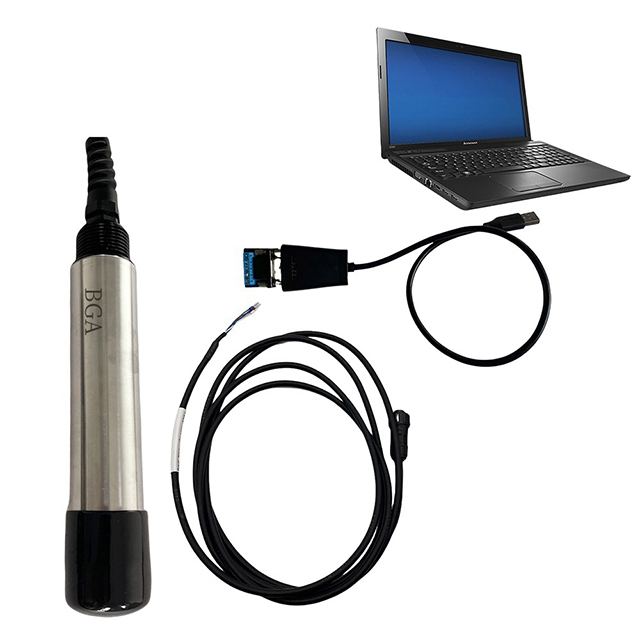

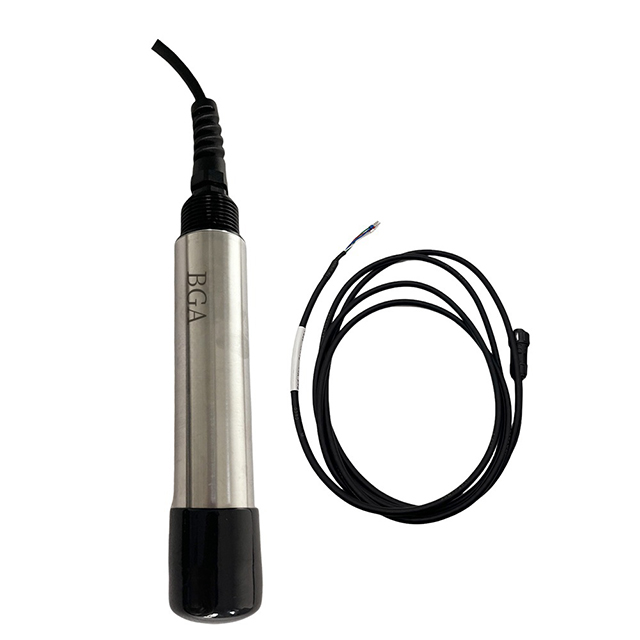

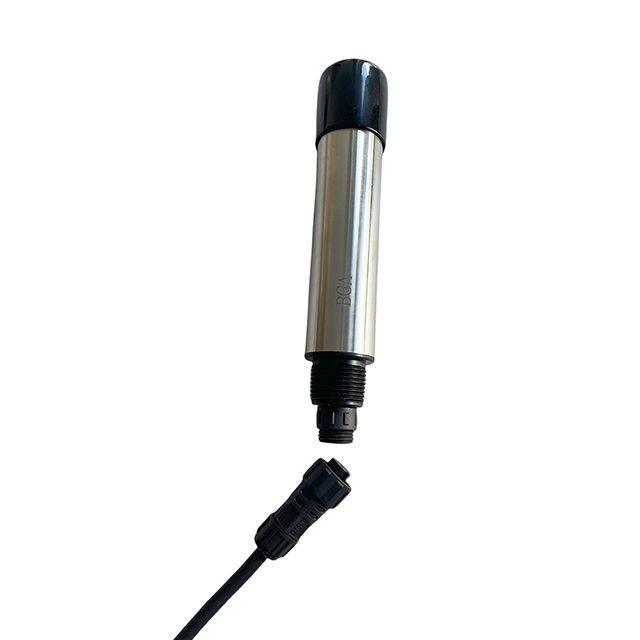

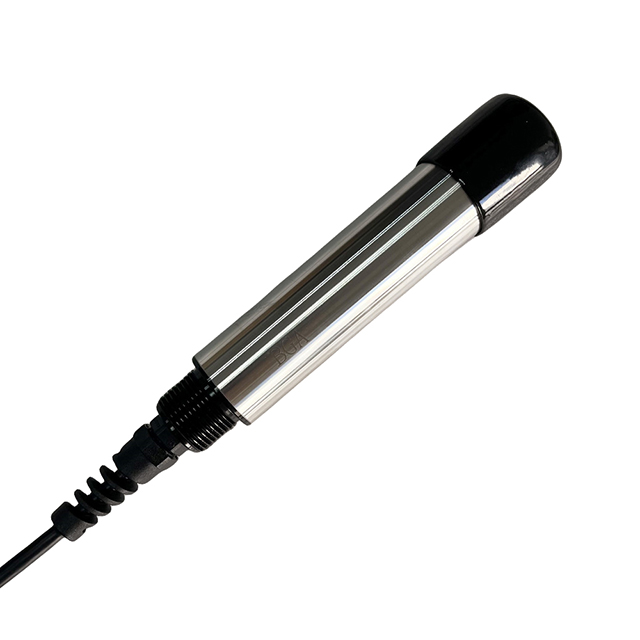

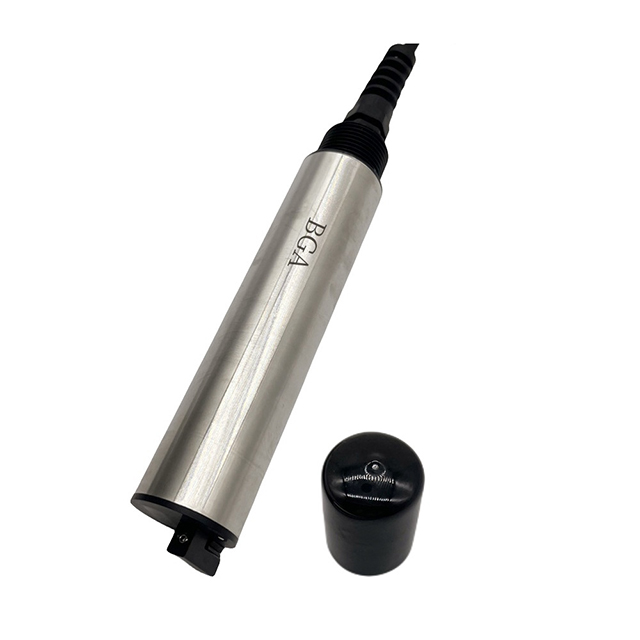

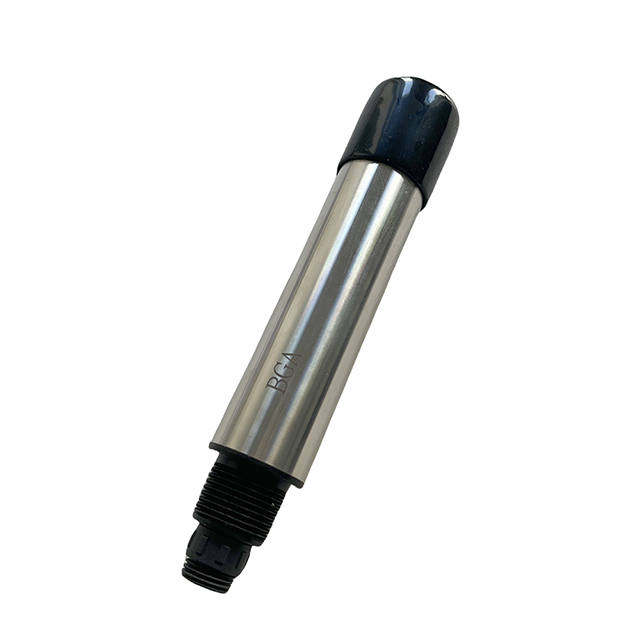

Blue-green Algae Sensor adopts fluorescence detection principle to measure concentration of blue-green algae by detecting the fluorescence intensity of excitation; It is widely used in monitoring algal growth, phytoplankton and eutrophication in river sections, lakes, reservoirs and coastal waters.
>> Characteristics
Florescence technology, fast measuring speed, high sensitivity, good selectivity;
Samples requires no processing and extraction, non-destructive, reagent free, pollution-free ;
With the function of self-cleaning, remove the attachment in the water sample, maintenance free;
Corrosion resistance shell, waterproof grade IP68, can work under water for a long time;
Automatic temperature compensation;
RS485 communication interface, standard Modbus protocol, easy to integrate.
>> Parameters
| Specification | Details |
| Size | Φ32mm*162.90mm (length) |
| Weight | 0.24KG |
| Main Material | 316 Stainless Steel + POM |
| O ring: viton ring+ rubber ring | |
| Cable: PVC | |
| Waterproof Rate | IP68 |
| Measuring Range | 0~100ug/L or 0~100RF U |
| Linearity | R²>0.999 |
| Resolution | 0.01ug/L |
| Data Output | RS 485, Modbus |
| Power | DC 12~24V, average current < 50mA |
| Storage Temperature | -20℃~+60℃ |
| Working Temperature | 0~50℃ |
| Pressure Range | ≤1Mpa |
| Calibration Way | One point or two point calibration |
| Cable Length | 5m standard cable, other length can be optional; |
| Guarantee Period | 12 months |
| 1. Optical measuring window |
| 2. Cleaning wiper |
| 3. Body housing Stainless steel |
| 4. Back NPT 3/4 thread |
| 5. Waterproof connector |
