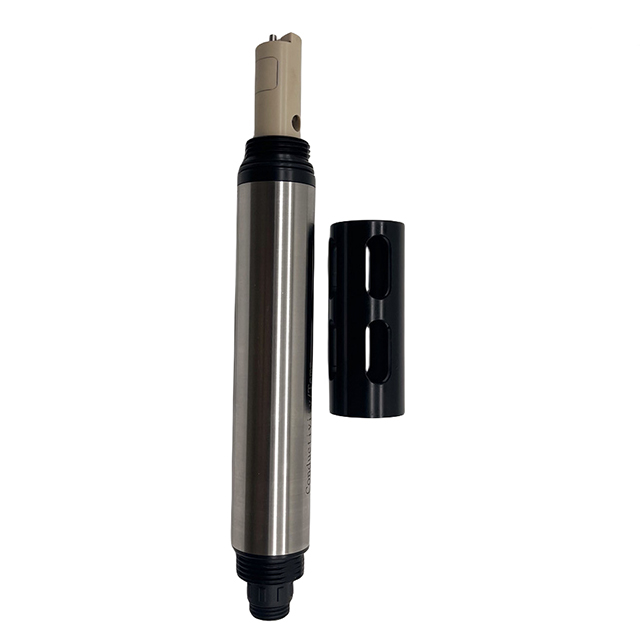

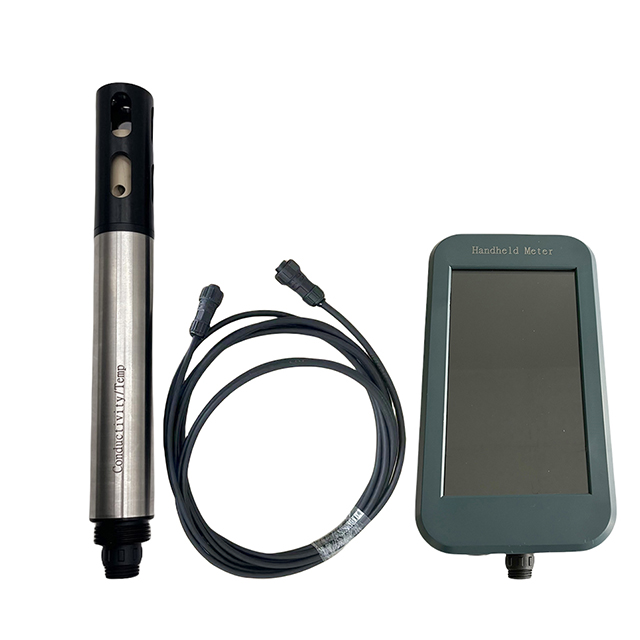

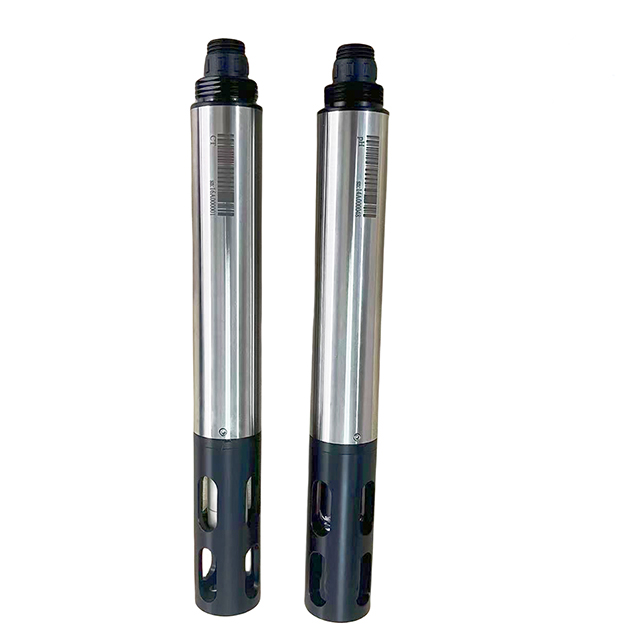

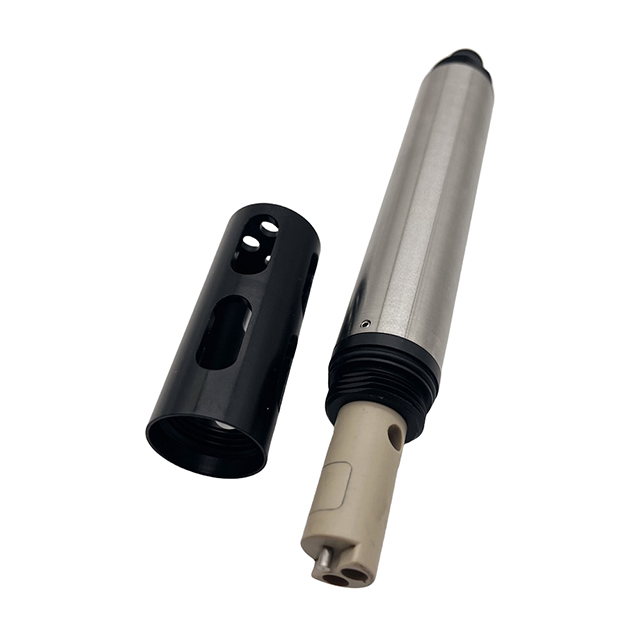

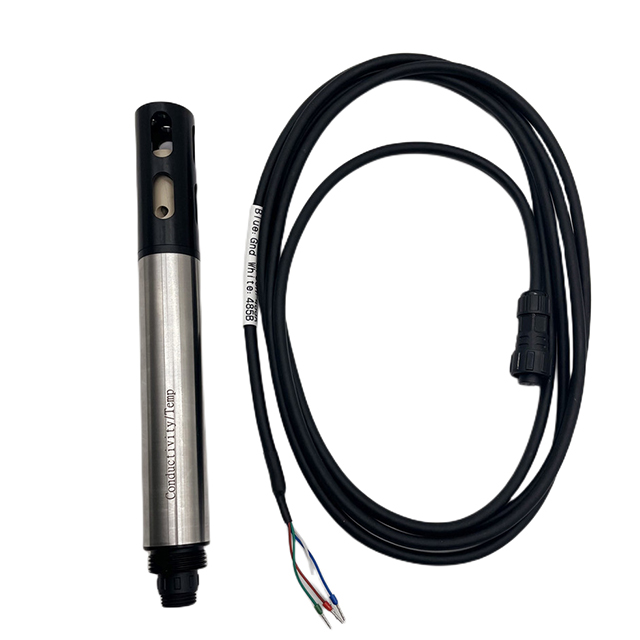

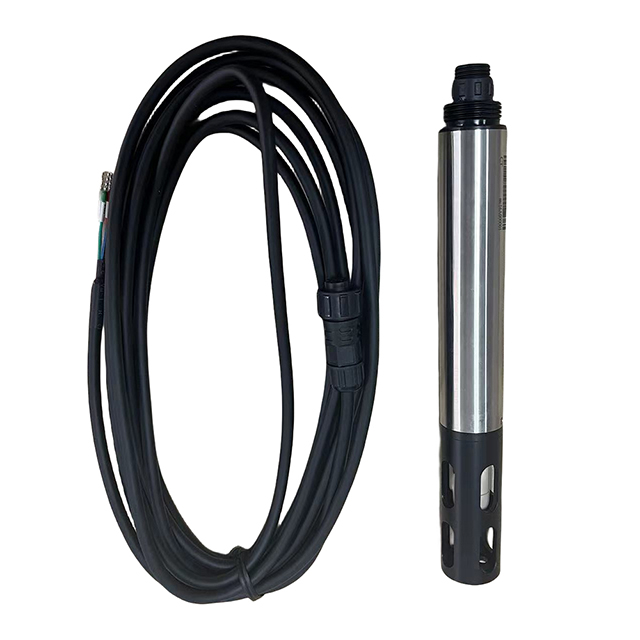

Water Conductivity Sensor (S16-A)

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

>> Information


S16-A Conductivity sensor adopts new four-electrode structure design, automatic temperature compensation. Housing material is stainless steel 316, works with RS485, MODBUS standard communication protocol. It can be worked as a single parameter sensor, also can be installed inside of a water system for online long-term monitoring water quality.

Suitable for surface water, groundwater, municipal sewage, industrial wastewater, and other applications.


>> Characteristics


  • Four-electrode measurement principle, no passivation, more accurate;

  • Support kinds of installation methods, can use different shell materials, thus suitable for many application;

  • Automatic temperature compensation;

  • Strong, corrosion resistance, anti-interference;

  • Wide measurement range;

  • Fast response time.


>> Parameters


Specification Details
Size Φ30mm*225.50mm (length)
Weight 0.24KG
Main Material 316 Stainless Steel + POM
O ring: viton ring+ rubber ring
Cable: PVC
Waterproof Rate IP68
Measuring Range 0 -200mS/cm
Temperature: 0~50℃
Measuring Accuracy 0 -100 mS/cm, ±1%; 100-200 mS/cm, ±2%
Temperature: ±0.2℃
Resolution 1μS/cm-100μS/cm ( according to range)
Data Output RS 485,  Modbus
Power DC 12~24V,  current < 20mA
Storage Temperature -20℃~+60℃
Working Temperature 0~50℃
Pressure Range ≤1Mpa
Calibration Way One point or two point calibration
Cable Length 5m standard cable, other length can be optional;
Guarantee Period 12 months

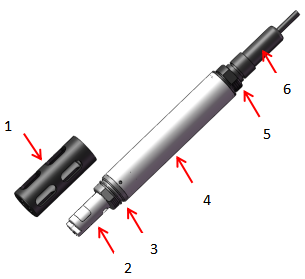

1. Protective cap
2. EC probe
3. NPT 3/4 thread
4. Body housing Stainless steel
5. NPT 3/4 thread
6. Plug
