>> Information
Salinity sensor adopts new four-electrode structure design, automatic temperature compensation, suitable for surface water, groundwater, industrial water, waste water and other application.
>> Characteristics
Measurement of conductivity and temperature, output specific conductivity, salinity and total dissolved solids and other calculation parameters;
Four-electrode measurement principle, no passivation, more accurate;
Support kinds of installation methods, can use different shell materials, thus suitable for many application;
Automatic range selection, automatic temperature compensation;
Strong, corrosion resistance, anti-interference;
Wide measurement range;
Fast response time.
>> Parameters
Specification | Details |
Size | Φ30mm*225.50mm (length) |
Weight | 0.24KG |
Main Material | 316 Stainless Steel + POM |
O ring: viton ring+ rubber ring | |
Cable: PVC | |
Waterproof Rate | IP68 |
Measuring Range | Temperature: 0~50℃ |
Conductivity: 0 -200mS/cm | |
Salinity: 0~70ppt | |
Total dissolved solids: 0~100g/L ( the value is calculated from the electrical conductivity, default value is 0.65) | |
Measuring Accuracy | Temperature: ±0.2℃ |
Conductivity: 0 -100 mS/cm, ±1%; 100-200 mS/cm, ±2% | |
Salinity: ±1% | |
Resolution | Temperature: 0.1℃ |
Salinity: 0.1ppt | |
Conductivity: 1μS/cm-100μS/cm ( according to range) | |
Data Output | RS 485, Modbus |
Power | DC 12~24V, current < 30mA |
Storage Temperature | -20℃~+60℃ |
Working Temperature | 0~50℃ |
Pressure Range | ≤1Mpa |
Calibration Way | One point or two point calibration |
Cable Length | 5m standard cable, other length can be optional; |
Guarantee Period | 12 months |

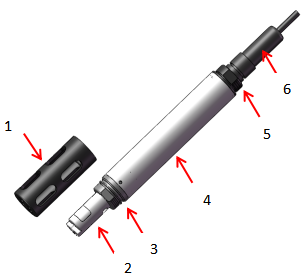

1. Protective cap |
2. Salinity probe |
3. NPT 3/4 thread |
4. Body housing Stainless steel |
5. NPT 3/4 thread |
6. Plug |
