>> Information
Turbidity Sensor adopts 90°scattering light principle, RS485 and standard Modbus, with a good advantage of wide range, self-cleaning and free maintenance; It can be used to measure turbidity value of backwash water in filter tank, raw water and sedimentation tank in waterworks, monitoring the water quality in industrial production and regular water monitoring for surface water, groundwater and pipe network.
>> Characteristics
Self-cleaning wiper to reduce microbial contamination;
Emits 880nm near-infrared light, can compensate for the influence of sample color;
Continuous measurement, fast response, suitable for continuous monitoring;
Many ranges for choice, can meet different accuracy requirements;
Flexible installation and easy for operation.
>> Parameters
Specification | Details |
Size | φ48mm*195mm (length) |
Weight | 0.32KG |
Main Material | 316 Stainless Steel + POM |
O ring: viton ring+ rubber ring | |
Cable: PVC | |
Waterproof Rate | IP68 |
Measuring Range | 0~10NTU |
Temperature: 0~50℃ | |
Measuring Accuracy | 0~10NTU:±0.1NTU |
Temperature: ±0.5℃ | |
Resolution | 0-10NTU:0.01NTU; |
Temperature: 0.1℃ | |
Data Output | RS 485, Modbus |
Power | DC 12~24V, current < 30mA |
Storage Temperature | -20℃~+60℃ |
Working Temperature | 0~50℃ |
Pressure Range | ≤1Mpa |
Calibration Way | One point or two point calibration |
Cable Length | 5m standard cable, other length can be optional; |
Guarantee Period | 12 months |

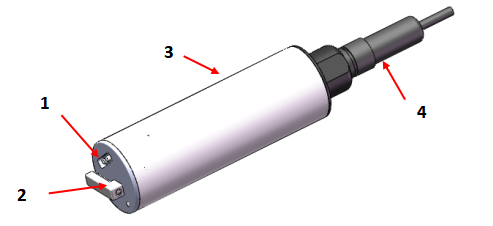

1. Optical measuring window |
2.Cleaning wiper |
3. Body housing Stainless steel |
4. Waterproof connector |
