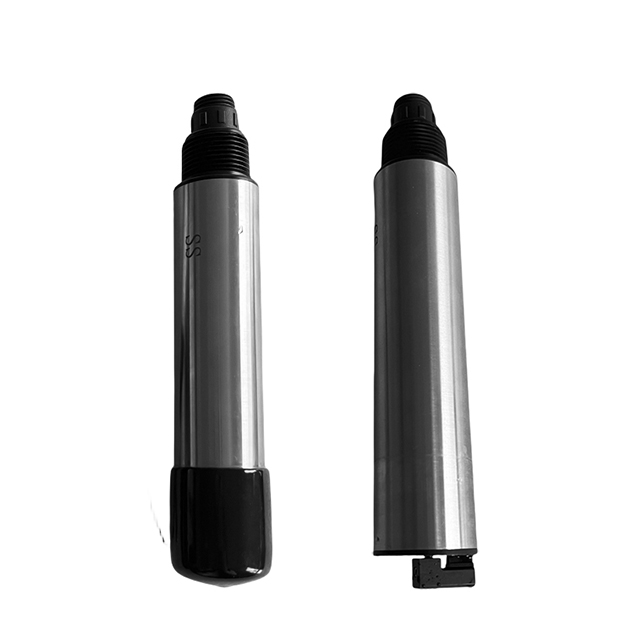

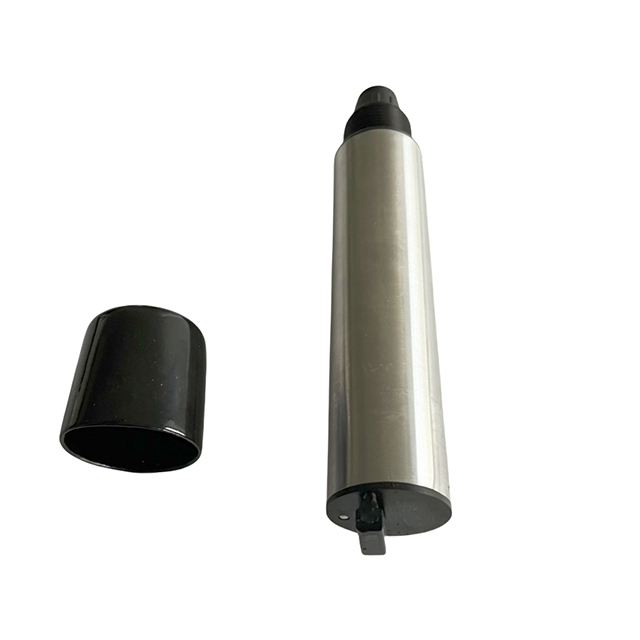

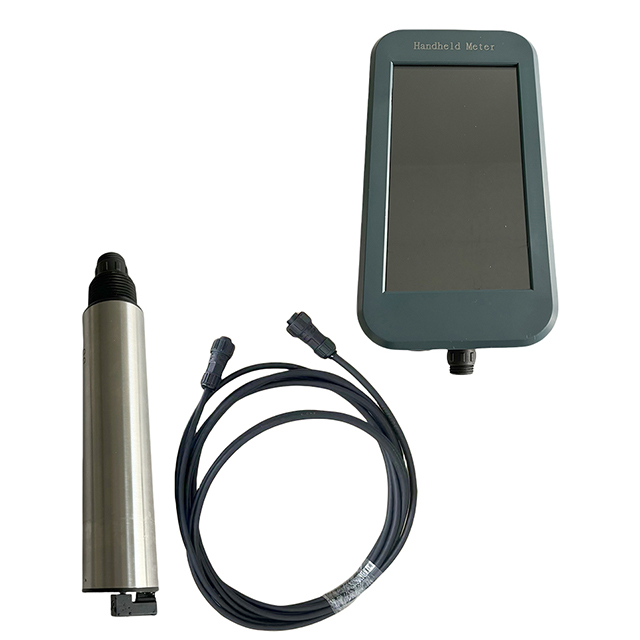

TSS Sensor (S20-A)

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

>> Information


TSS (Total Suspended Solids) Sensor uses the principle of back 45°scattered light detection, RS485 connector and standard Modbus, with a good advantage of wide range, self-cleaning and free maintenance; It can be used in water works filter backwash water suspended matter measurement; Water quality monitoring in industrial production processes; routine water quality monitoring of surface water, groundwater and pipe network.




>> Characteristics


  • Self-cleaning wiper to reduce microbial contamination;

  • Emits 880nm near-infrared light, can compensate for the influence of sample color;

  • Continuous measurement, fast response, suitable for continuous monitoring;

  • Many ranges for choice, can meet different accuracy requirements;

  • Flexible installation and easy for operation;



>> Parameters


Specification Details
Size Φ32mm*162.90mm (length)
Weight 0.24KG
Main Material 316 Stainless Steel + POM
O ring: viton ring+ rubber ring
Cable: PVC
Waterproof Rate IP68
Measuring Range 0.01~5000mg/L
Temperature: 0~50℃
Measuring Accuracy 0~10mg/L:±0.1mg/L
10~100mg/L:reading value±2% or ±0.1mg/L take the bigger
100~5000mg/L:reading value ±5%
Temperature: ±0.5℃
Resolution 0.01 mg/L

Temperature: 0.1℃

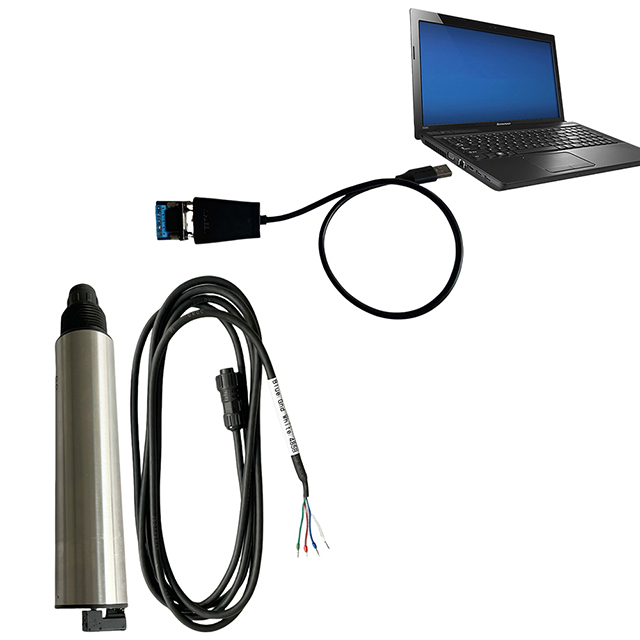

Data Output RS 485,  Modbus
Power DC 12~24V,  current < 30mA
Storage Temperature -20℃~+60℃
Working Temperature 0~50℃
Pressure Range ≤1Mpa
Calibration Way One point or two point calibration

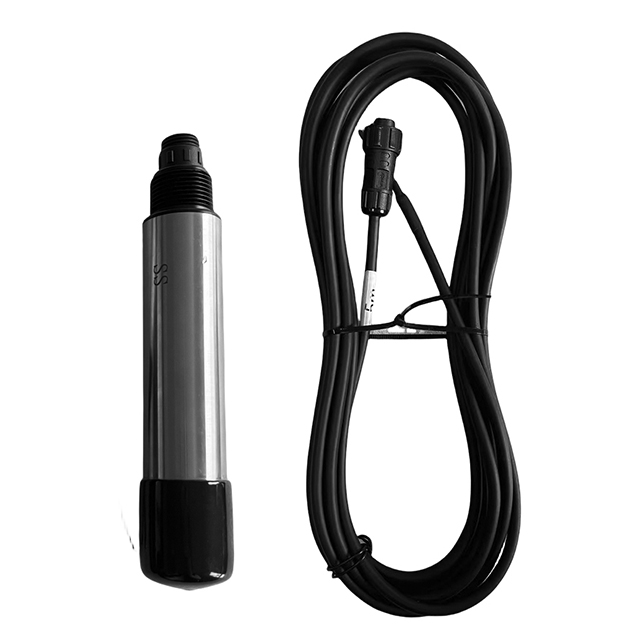

Cable Length 5m standard cable, other length can be optional;
Guarantee Period 12 months

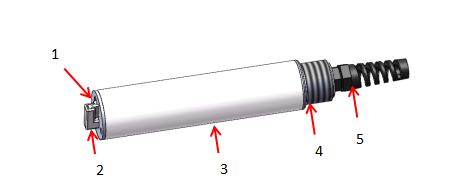

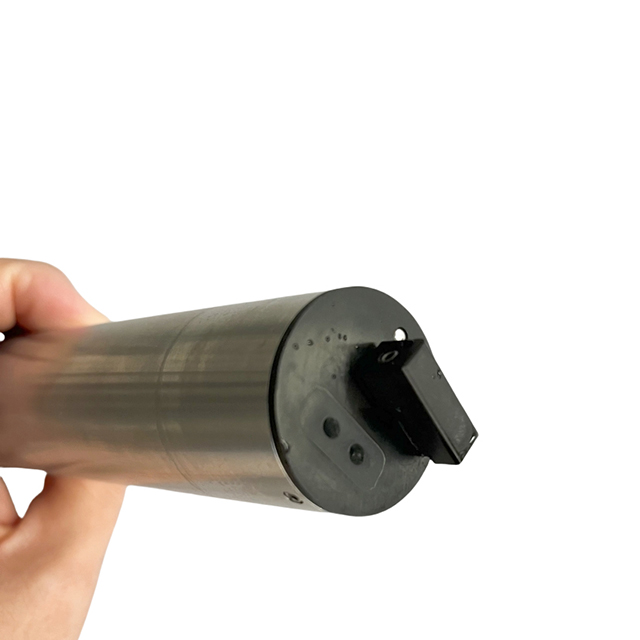

1. Optical measuring window
2.Cleaning wiper
3. Body housing Stainless steel
4. NPT 3/4 thread
5. Waterproof connector
